MEP BIM Modeling and BIM Coordination Project for a Mixed Use Building along with creating coordinated shop drawings or MEP coordination drawings.

Contact Us
Battersea

Project Details

01.Project Type: Residential Apartments

02.Number of Units: 250

03.Levels: Ground Floor, Upper Ground Floor, Levels 01 to 07, and Roof

04.Turnaround time: 2 weeks

05.Size: 61,000 m2

06.Software: Revit 2021, Navisworks, AutoCAD

The objective of this project was to perform MEP BIM Modelling and MEP BIM Co-ordination with respect to Architectural, Structral and MEP Services along with creating MEP coordination drawings (coordinated shop drawings).

Project Summary

Battersea Power Station is a legendary landmark located in London Borough of Wands Worth. The Power station has been converted into a 7 floor residential apartment where the surroundings have been curated and bought back to life. The most fascinating about this building is that the exterior still looks like a power station while the interiors have been transformed and made residential. Tesla has successfully delivered high quality MEP model for the apartment in quick turnaround time.

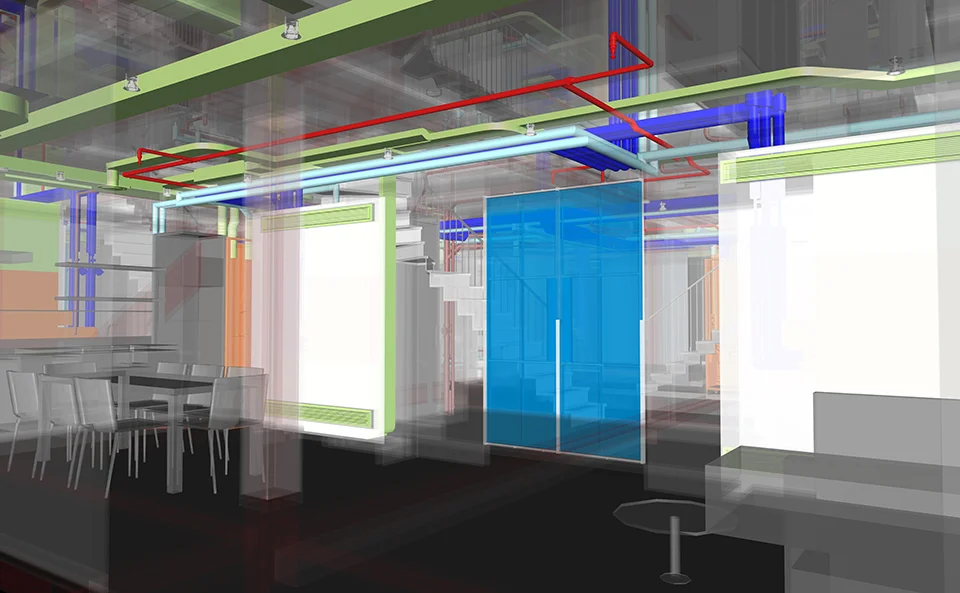

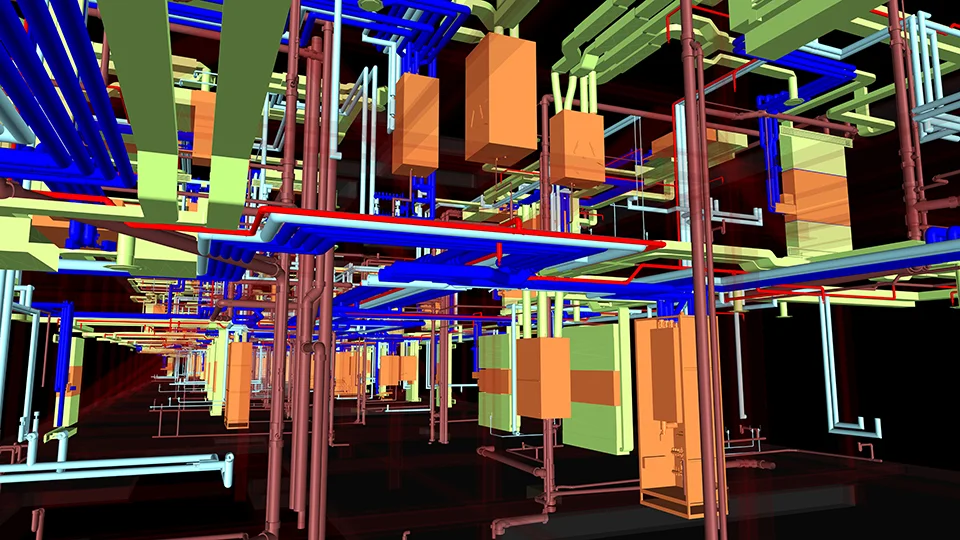

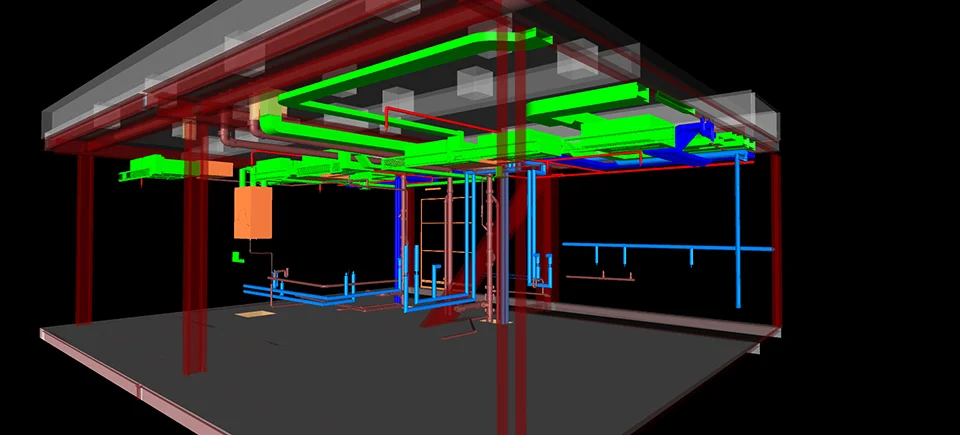

3D MEP BIM model of a mixed-use building showing color-coded HVAC ducts and plumbing systems within transparent architecture.

Project Deliverables

  • Mechanical Pipework Layout
  • Fire protection layout
  • Ventilation Layout
  • Public Health Pipework Layout
  • High Level Pipework Layout
  • Fire Protection layout.

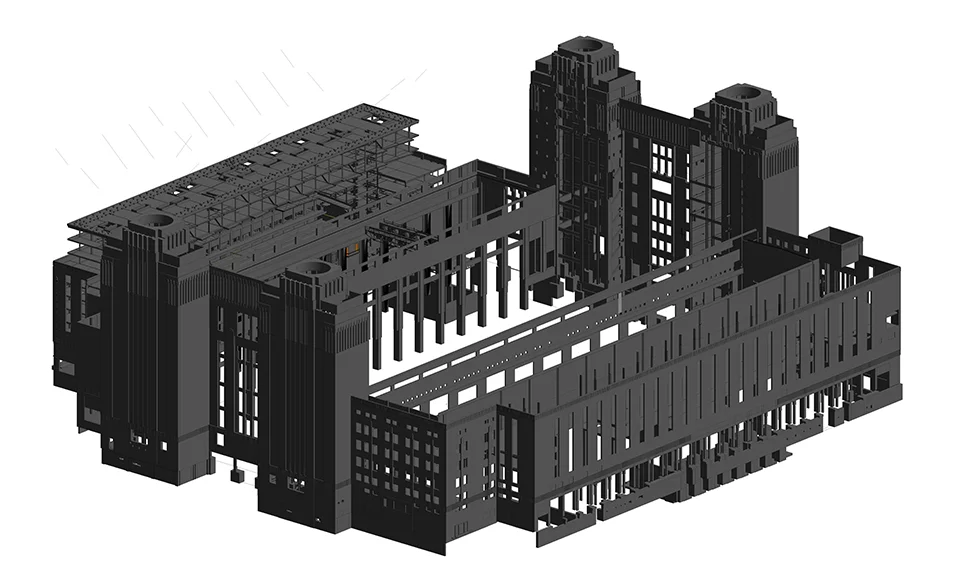

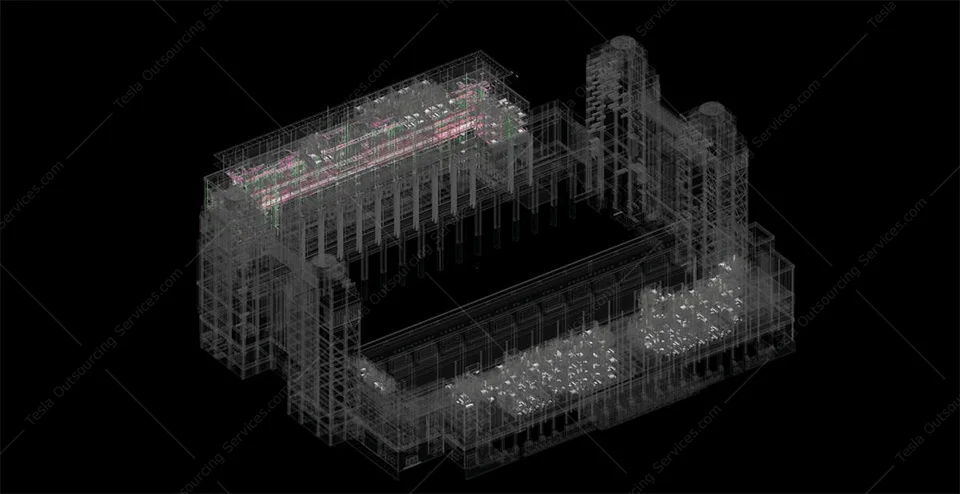

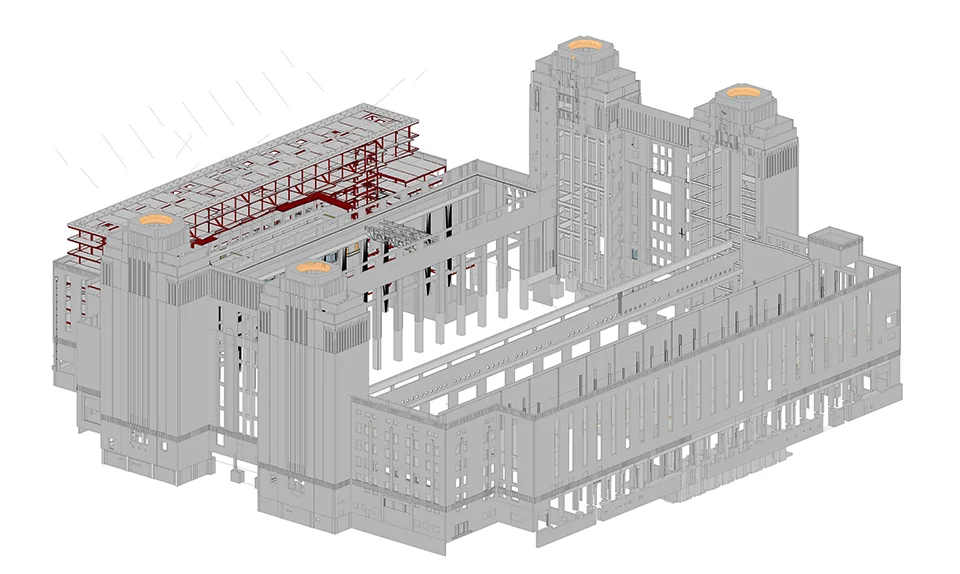

Wireframe 3D structural BIM model of Battersea mixed-use building showing intricate internal framework and building massing.

Testimonial

"I was impressed by the quality of the work. I look forward to collaborating on more projects with your team."

- David

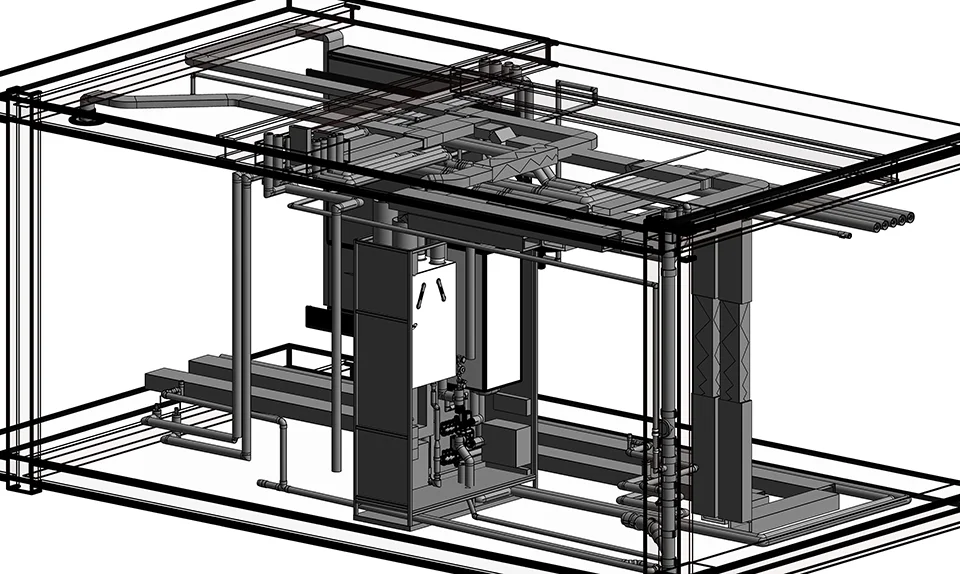

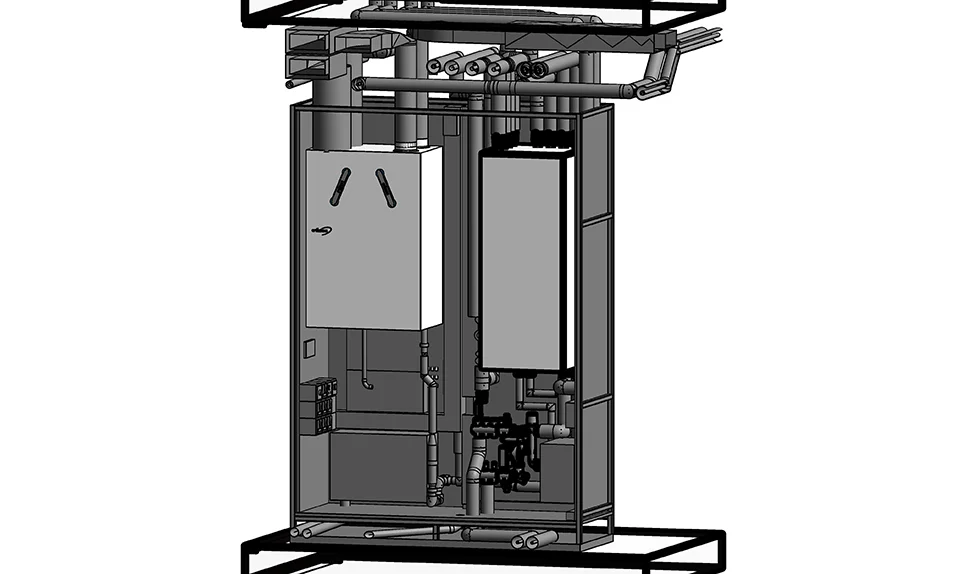

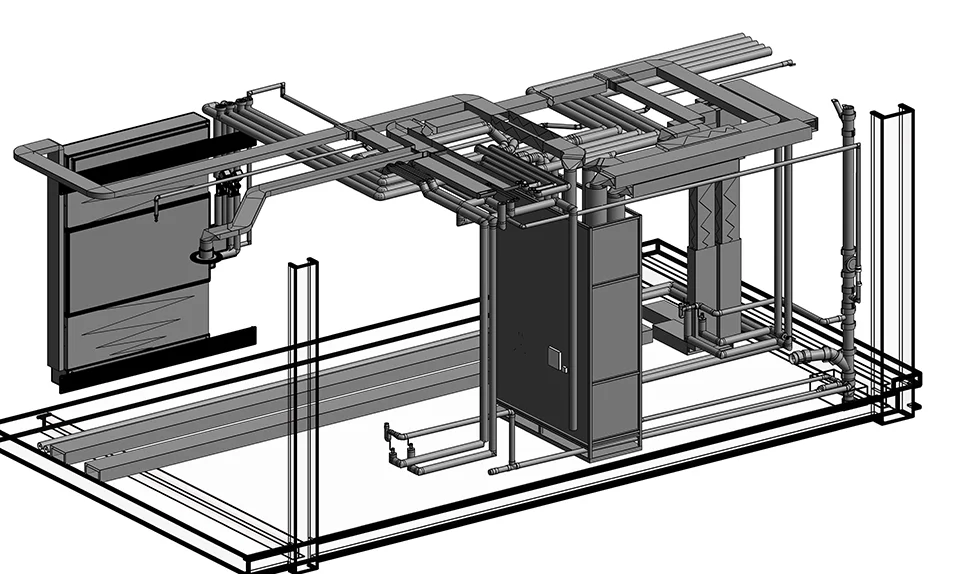

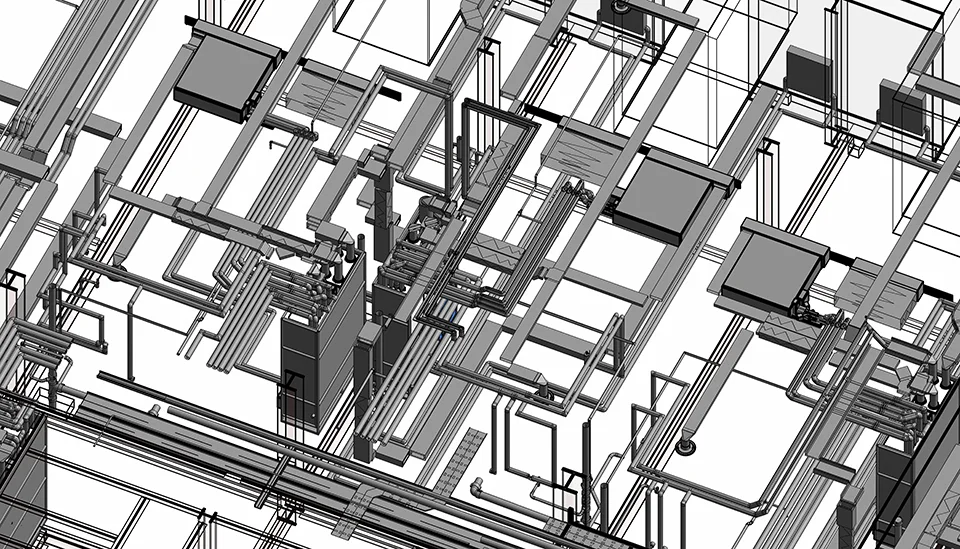

Project Gallery
